DS430M Digital Servo

Dati Tecnici - Technical Data

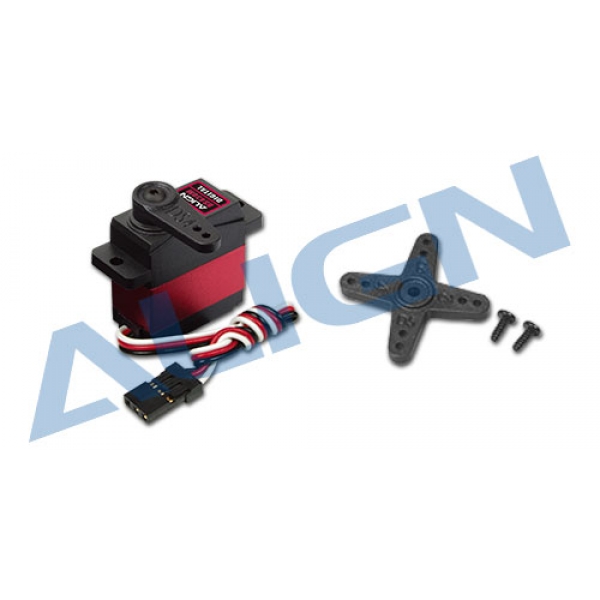

HSD43001- DS430M Digital Servo

Instruction:
• Suitable for T-REX 450 series.
• Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
• Along with double bearing support, resulting in minimal dead-band of gear and better longevity.
• High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo, suitable for T-Rex 250/450 CCPM cyclic use.

Specification:
• Stall torque:2.3kgcm?4.8V?
• Stall torque:2.9kg.cm?6.0V?
• Motion speed:0.095sec/60°?4.8V?
• Motion speed:0.08sec/60°?6.0V
• Rating voltage:DC 4.8-6V
• Temperature range:-20°C~+60°C
• Dimension:22.8 x 12 x 25.4mm
• Weight:15g
• 1520?s standard band

Accessories:
• Servo rudder piece x 2
• Set screw x 1
• Tapping screw for servo x 2
